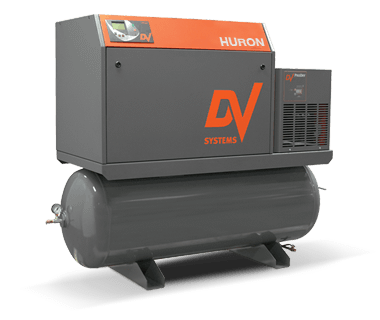

SINGLE PHASE 10 HP B10VS Rotary Screw Compressor

This SINGLE PHASE 10 HP B10VS Rotary Screw Compressor is truly a one of a kind.  The VSD drive allow 10 horsepower on a single phase circuit.  Matched with a rotary screw air end it will supply a constant 37cfm at 145psi.  Tank mounted with a prefilter and refrigerated air dryer this compact compressor will give years of quiet and reliable service. An additional benefit is the economy of a VSD drive that minimizes inrush current at start up and matches air production to air consumption.  DV Systems is a Designer of High-Performance, High-Efficiency Air Technology Solutions. They have been engineering and manufacturing industrial air compressors since 1954 and their commitment to a culture of innovation dates back 100 plus years.  For more information on this SINGLE PHASE 10 HP B10VS Rotary Screw Compressor  download the brochure or contact us.

Premium-Efficiency TEFC Industrial Motor

Motor RPM: 3450 RPM

Single-Phase: 230V / 55A / 60Hz

3-Phase: 200V / 38A, 230V / 35A, 460V / 15A / 575V / 12A, 60Hz

Class F Insulation

Download Brochure

Model: B10TDVSD

HP: 10

Sound: 68 dBA

SCFM 145 PSI: 37

Height: 51″

Width: 68″

Depth: 24″

Weight (lbs): 870

SINGLE PHASE 10 HP B10VS Rotary Screw Compressor
